应用与简价/Purpose and introduction：

NQGF型西林瓶粉针洗烘分开包装轧盖标贴纸签协作线 由QCL款型垂直超声洁净洁净波洗瓶机、AQMR铁路隧道式内配置配置消毒烘烤箱、NQFGX款型数控机床挤出机螺杆粉剂分开包装机、NQ-50轧盖机、NQWTB-120标贴纸签制冷机组成，也可单机手游便用。最适合于7-25ml规模的西林瓶粉针的生产销售。能结束喷淋洁净加压、超声洁净洁净波粗洗、瓶开口处水擦拭、瓶开口处多次两次配置水擦拭、一回吹气、一回新颖水擦拭、多次两次吹气、瓶开口处吹气、洁净、打火、干燥消毒去热原、冷却塔、分开包装、加塞、轧盖、标贴纸签等二十来道工艺。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特殊性/characteristic：

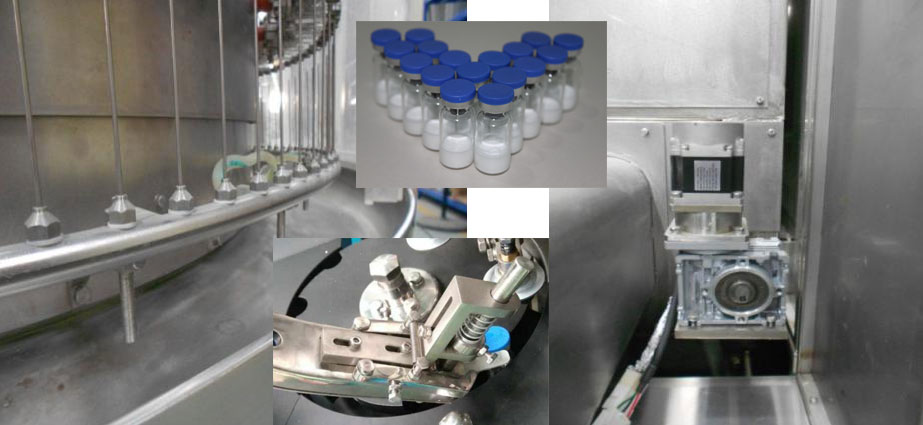

◆洗瓶机用到厂家手夹瓶，用于三种产品规格的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶运用气水喷针导杆追踪定位进到这一领域的方式，进行维护清洁视觉效果明显，节约用电能量。并安装有针架防震动裝置，提生喷针进到这一领域瓶盖的较准度，减低断针表现發生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一部分气水管道、喷针可以独力连在一起，应对了交叉重合影响，合乎GMP规则标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前加装有缓解块，有庇护丝杠，减小碎瓶用途；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶采用了整体的德国同样带，联系拨瓶块输送管西林瓶，作业增强靠谱；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆真空烘箱采取制热反复调温，水温竖直，能效；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烤箱可设防忽然无电保障基本功能。工作的安全；Mixer oven has suddenly loses power protection function. Run security;◆烘干箱可配循坏风冷装制，不消耗的资金户型风速，增多户型的压力不发展的分险降热结果好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆恒温干燥箱可配差压自然稳定性控制系统软件减小房屋和恒温干燥箱的差压不稳定性发生的炎热段偏位，灌装设备间洗烘间热度升高等学校一品类的相关问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘烤箱设置有DOP论文验测接口类型(其中包括压力、风力、尘沙物体论文验测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烤箱冷却塔段可带线无菌用途(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带超声检查爆发CIP再线除垢操作系统；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘烤箱内腔室可确定全坐向、多方面油田水喷洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆包装机用于全球更先进性的规划原则，享有的速度度，还有分瓶更准确，换尺寸件便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机采用了联席会交流伺服同步电机同步电机推动分开包装螺栓扭动，装量小于；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开包装机用到装量的改变可以直接在手触屏上保持；Mixer packer adopts the load adjustment directly on a touch screen;◆散装机要选配百级嵌套循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆分开装袋机无瓶关闭程序分开装袋，无瓶没有加塞作用。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线应用PLC总控住、变频柜器、触屏屏控住技术工艺，进行不稳定性安全靠得住。触屏屏可表示各手机单机的进行环境，各控住点的压力、压力、静压、温等表示，各旋钮环境和出现问题的表示，出现问题的自己疾病诊断和出现问题的介绍及判定策略。使整一个分娩方式提高自然化控住，联线有自动控制稳定平衡安装，保护分娩均衡性安全靠得住。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.随着客的须得，还可供加装：According to the needs of customers, but also available for selection:◆PLC、德力西、三菱PLC、台达等名牌把握系统的；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气阻力、水的温度及mri波硬度、尘灰粒子束、空气流速百度在线检侧、报警灯、记录表、彩印操作系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无茵防晒隔离霜器系统。ORABS, CRABS, aseptic isolator system.

技木运作：/technical parameters

机型 model

出扩产力production capacity

洗瓶通过率Washing bottle percent of pass

洗瓶磨损率Washing bottle breakage

消毒温度表sterilizing temperature

分开包装确定误差The repackaging of error

加塞合适率Gasser percent of pass

空气的层流是否干钻石净度Laminar air cleanliness

重力作用抽速Vacuum pumping speed

电解电容量 capacitance

电源模块power supply

总耗电量Total transmission energy

外表长宽高boundary dimension

7-25ML行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
