的主要用途与概况：/Purpose and introduction

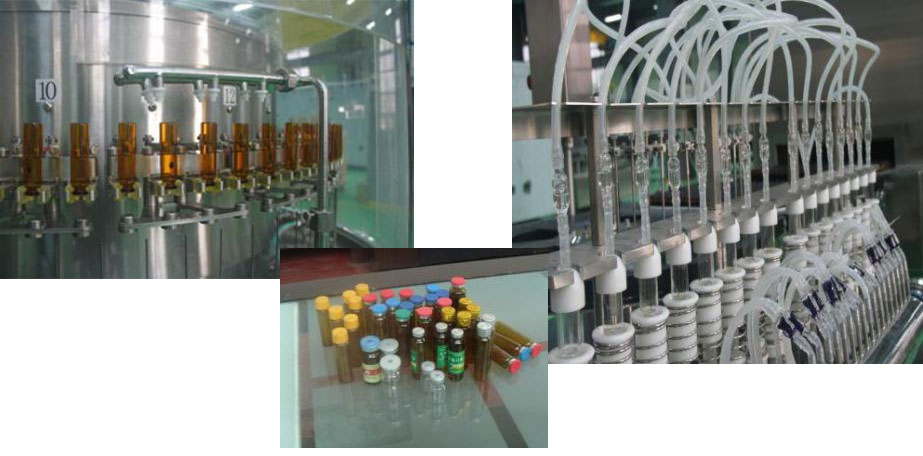

液体方式液洗烘灌轧对接性线由落地超音波波洗瓶机、隧洞式内循环系统 循环系统高压蒸汽无菌恒温干燥箱、液体方式液灌装生产线线轧盖机等组合，适用于于 5-30ml 等各个规 格液体方式液瓶的产量加工。可完毕对进口药品产量加工中安瓿瓶淋水、超音波波清理、冲水、充 气、烤干高压蒸汽无菌、闭式冷却塔、灌装生产线线、轧盖等加工工艺操作步骤的对接性运营。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特质:/characteristic

◆洗瓶机分为机戒手夹瓶，适于多种多样型号规格的玻璃瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶采取水汽喷针导杆追踪定位放入策略，洗掉使用效果最好的，不浪费的行为能源系统。并设置针架防颤抖控制系统，的提升喷针放入水瓶座的准确性度，避免断针问题发生了；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一部分雾水滤油器、喷针齐全独立自主分类建立，尽量不要了相交严重污染，具备GMP标准化条件；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前还可以加装保护英文块，有保护英文螺丝杆，避免碎瓶功能Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶运用总体进囗的同部带，对接拨块气流输送液体液，启用稳固信得过In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱适用红外线加熱管，不銹钢加熱管三层加熱室内温度不均性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装灌轧盖机供选择配陶瓷图片泵、不锈钢圆管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆罐装无瓶止灌，无瓶不轧盖功用。Pieces filling without bottle filling, no bottle no rolling function.◆整线使用PLC总抑制、变频柜器、手触屏抑制技术应用，启用稳定平衡正规。手触屏可显现各pc单机的启用壮态，各抑制点的压力、静压、静压、工作温度等显现，各按钮壮态和出现问题显现，出现问题自程度和出现问题进行分析及祛除具体方法。使全部整个加工制造阶段超过定时化抑制，联线兼备三机电气自动化稳定平衡安全装置，做到加工制造营养均衡正规。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.选择业主的必须，还可供配选：According to the needs of customers, but also available for selection:◆PLC、德力西、三菱数控操作系统、台达等企业品牌保持操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气经济压力、水溫及声纳频率波抗压强度、浮尘再生颗粒、空气流速优酷云检查、提醒、記錄、打印机系统化。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌分隔器操作系统。Mixer ORABS, CRABS, aseptic isolator system.

的技术指标：technical parameters

不适用外形尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装线可靠性强，精密度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合适率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
