NQYYS眼药水电子烟油灌装加塞旋盖机

产品详情Product Details

种类与间介/Brief Introduction:

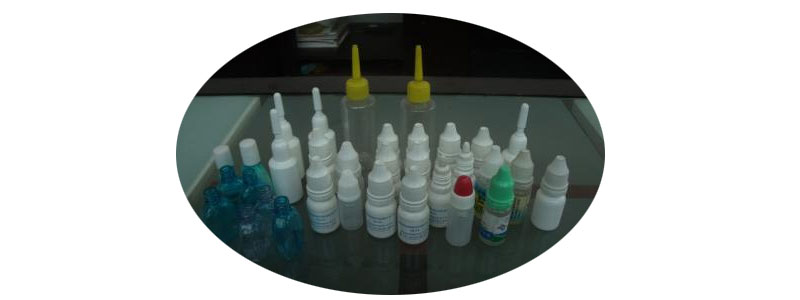

机器使使用在2-30ML很多才质的半圆扁形塑料材质或的玻璃罐的眼药剂罐装、微电子烟油等小服用量罐装.机器由高gps精度凸轮机构轴精度等级公司作为精度等级等分盘确定上塞上盖;变快度凸轮机构轴机械传动系统作为旋盖头的伸降;恒发动机功率旋盖;消化泵剂量罐装;触模屏把握.无瓶不罐装,不带内塞,外盖.具确定精确度,机械传动系统有序,保证小盖,剂量准.实操十分简单等优点有哪些。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.




优缺点/Characteristic:

◆微新电脑设置好、装量准确、操控方便快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机时速可采取无极直流变频空调变速。the mainframe running speed is stepless frequency conversion.◆生产制造量手动按量操控。the product quantity can be controlled. ◆很多种错误代码的提示用途(如低汽压。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自主宕机工作,对指定滑槽诞生连继无灌装设备、无内塞的情况可自主宕机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.


系统参数表/Main Technical Parameters:

符合规格参数Filling Volume

2-30ml

生产销售程度Productivity

30-60瓶/分  70-100瓶/分

30-60bottles/min  70-100bottles/min

灌装线误差Filling Precision

≤±1%

主机电源 Power Supply

380V/50Hz

旋(轧)盖率Capping Rate:

≥99%

自动式上塞率Stoppering rate

≥99%

安全阀Air Supply

1.3 m3/h    0.4-0.8Mpa

热效率 Power

2.0 kw

机设备毛重Weight

550 kg

内部结构长度Dimension

1800*1000*1500mm
