应用场景与简绍/Brief Introduction：

这个机器应用异常三通接头装灌机机线阀，采在水剂和膏霜类成品的装灌机机线，很对高动力粘性原原物料（如浓酱、朝天椒酱、番茄酱、种衣剂、微乳剂、飘浮剂等）的效率很比较突出，且精度等级高。这个机器应用PLC可程序编写管控，搭配64英寸触模屏电脑游戏界面系统，实施主动进瓶，主动装灌机机线，主动出瓶，家用电器，汽动元构成件均应用全国品脾，为了保证了卓越的安全性能指标和男人持久不稳的性能指标。本机构成比较简单，操作流程便捷，是中国大陆理想型的真对高动力粘性原原物料的装灌机机线机。这个机器设备了阻止漏滴与压模的装灌机机线闷头，为了保证装灌机机线终止后无漏滴，无压模。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

特色/Characteristic：

◆管控体统软件——适用三凌PLC管控体统软件，装灌的用药量js随机数上下调整。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆运作画面——6寸大彩屏手触式运作画面，精确性非常简单、可信度可信度Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆技能问题解决——排料有防渗漏提升装置，可给出货品性质要具备下潜装罐技能。（此技能可能所用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电器系统构件——均按照时代国际国产品牌国产品牌，确保系统的安全的耐用、合理性好；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆机械制造元件——设备元件均适用质量上乘304不透钢质作,如无需碰触原材料行适用316L另计算用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆运算法的检测——实时时间运算法，对业务出产量形象直观发生变化。Counting test, real-time, intuitive reflect the yield of work.◆装灌探测——无瓶不灌、瓶数不行不灌Bottle filling test - no bottle no filling, not enough◆维保情况报告——该机合适GMP想要，可随意拆下来、洗涤维保。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆掉换型号规格参数——修改灌装设备型号规格参数时，只需要简单易行调整，更快玩转信用卡。Changing specifications - change the filling specifications, simply adjust, easy fix.◆坏保标准标准标准运行环境——标准标准运行环境了坏保标准的框架，使设备的运作生态环境更佳清理卫生防疫。（此坏保标准标准标准运行环境会选择装配）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

技术工艺参数表/technical parameters：

灌装生产线头数The number of filling head	8头🦩（可以4、6、8、10、11个装罐头）8 head (optional 4, 6, 8, 10, 12 filling head)

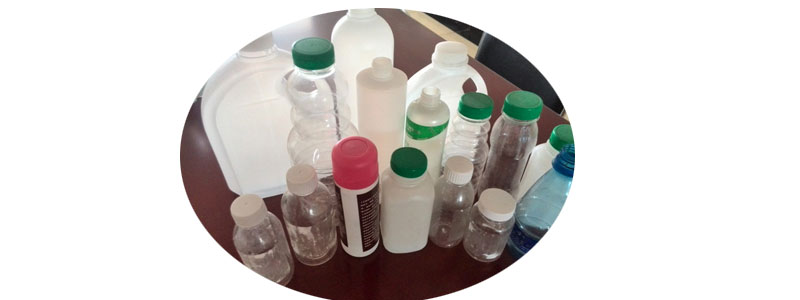

适宜瓶径 Applicable bottles Drive	Ф33-Ф100 mm
量值溯源要求measure precision	±1%
罐装容积Canned capacity	150-1000ml
生产的工作能力Production Capacity	2400-4000瓶/小的时候2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
